TiGate

TiGate Overview

(Total Information Gateway)

TiGate™ is a combined pack of gateway software which performs as a manager between various types of equipments and information system. It focuses on specific issues such as security, extendability and independency. The best choice in complec industrial site.

TiGate™ can be fractionned in those 3 following sectors : Interface layer, Data Manager Layer and Support Layer. To manage and support data exchange, based on TiSHM and RDB processing, it allows efficient exchange of data between external devices through RTD(Real Time Driver) and the maintenance of the software itself.

TiGate Feature

1. Framework TiGate is a Repository Architecture Framework taking care of various type of data occuring in industrial site.

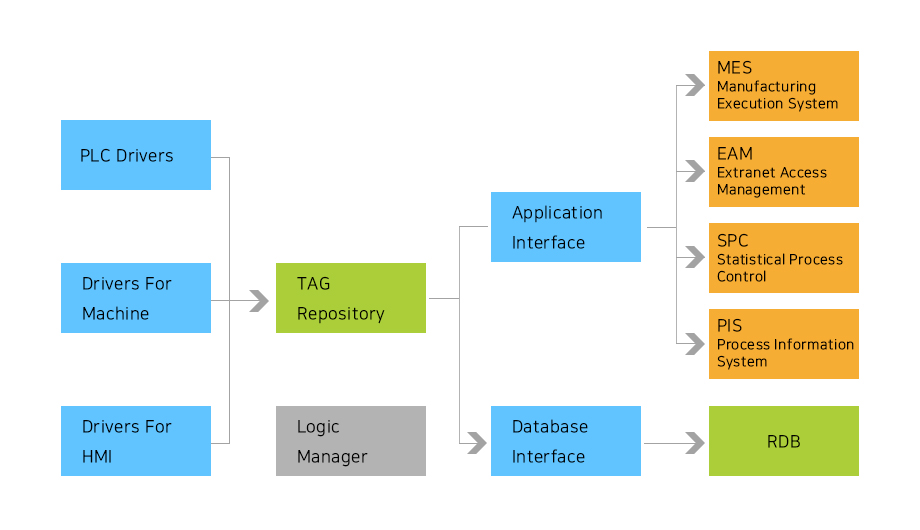

2. Gateway Role of Gateway, supporting exchanges between DA (Data Access) and A&E(Alarm and Event).

3. Collection Server DCS(Data Collection Server) for the gathering of all types of data such as momentary, record and alert.

4. HMI
(Human-Machine Interface)
Based on collected informations from the DCS, HMI is able to build surveillance system. It may display surveillance interface using momentary data(HMI standard pack) or/and record data.

5. Components Device users have self-assembly options, additional drivers can simply be exchanged with those existing.

TiGate Composition

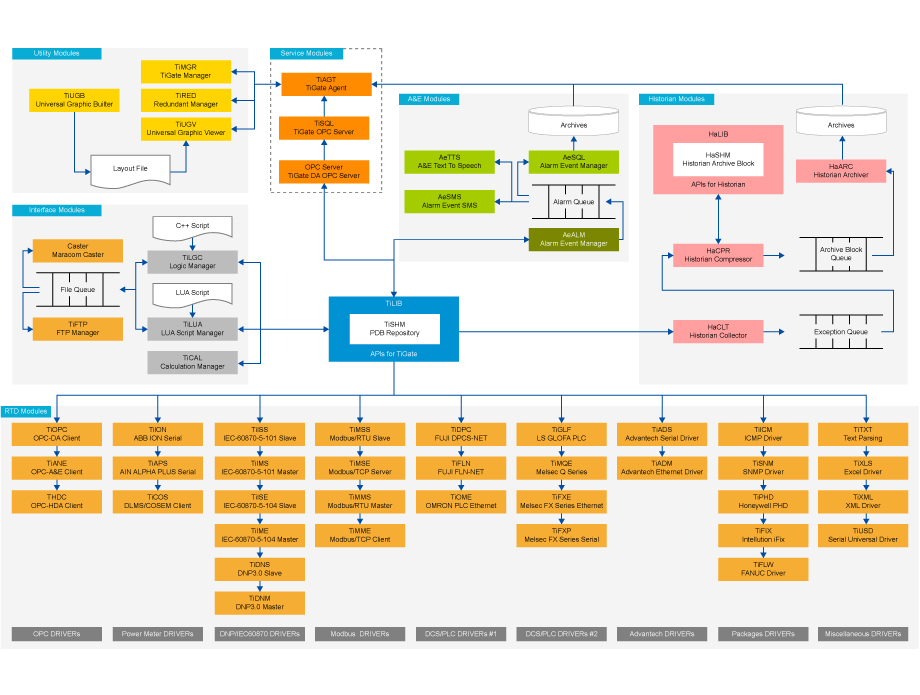

TiGate can be categorized into an Interface Layer, Data manager Layer, and Support Layer.

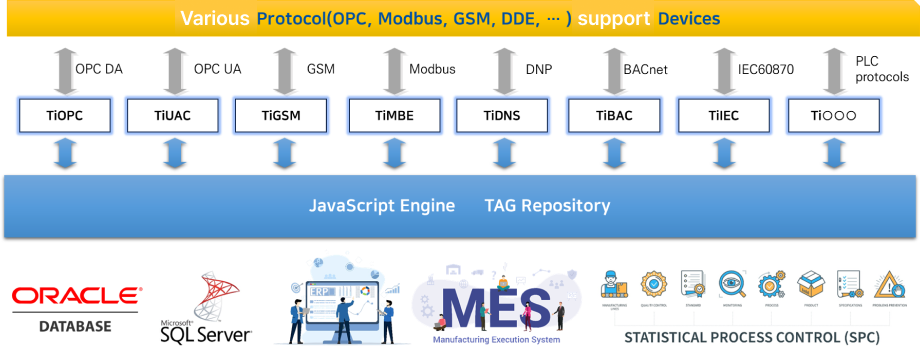

The core module, the data management layer, consists of an interface layer consisting of a Tag Repository, a database, or a real-time driver module for data exchange with various external devices, and various supporting systems for TiGate management.

TiGate Background

Time-Consuming Development of a system interface to communicate information of this type of system to each other or to users

Time-Consuming
Instability of the System Development of a collection module for each protocol you want to convert for the protocol conversion

Time-Consuming For processing the collected data, it is necessary to implement it with development tools such as Visual Basic or Visual C++

Inconvenience of Operation Pre-developed applications need to be updated as more data is being collected

Provides a variety of pre-developed and validated drivers for reliable system deployment

The structure makes it easy to add/delete the data you want to collect, so there is no need to redevelop the driver due to the increase in the collected data

Logic implementation through Pre-compiler enables various processing of collected data

Repository Architecture allows data exchange between facilities by adding drivers required for each facility

TiGate Architecture

Safety Through all previous experiences, we improved our operating program into its best secured package form.

Extendability The simplicity of adding supplement drivers allows variety of gateway system structure.

Independency Each module included in our pack has been programmed independently in order to be in its best safety condition therefore the system is open for connectivity.
